首页 > 供应产品 > 直销纳米碳散热片 超薄纳米涂层铝箔散热片 纳米碳铝箔 手机平板专用散热片
直销纳米碳散热片 超薄纳米涂层铝箔散热片 纳米碳铝箔 手机平板专用散热片
产品: 浏览次数:737直销纳米碳散热片 超薄纳米涂层铝箔散热片 纳米碳铝箔 手机平板专用散热片
品牌: 莱美斯
额定电压: 6Kv
适用范围: 电子
单价: 8.00元/片
最小起订量: 1000 片
供货总量: 10000000 片
发货期限: 自买家付款之日起 天内发货
有效期至: 长期有效
最后更新: 2021-11-13 20:51

详细信息
额定电压 6Kv
适用范围 电子
产品名称 纳米散热片
材质 铜箔
产品认证 欧盟ROHS标准
厚度 0.30mm
耐温 260(℃)
颜色 黑色
阻燃性 UL94-V0
品牌 莱美斯
型号 LMS
加工定制

    纳米涂层铝箔散热片

    超薄纳米碳散热片,内含高导热铜铂,广泛用于数码产品。欢迎来电咨询



    铝箔纳米散热片概述:

       LMS系列纳米碳铝箔散热片是具有高导热性和高的灵活性;和纳米碳铜箔一样采用纳米碳材料均匀涂布于铝金属基材,由高导热效能进行热传导,再藉由碳原子高热辐射 效 能,将热能转换为红外线射频,传递散热效能。具有高导热性和热辐射效率高。更改热红外射频,通信冷却效率。但铝箔比铜箔成本更低。 目前市场上采用的 手机导热膜都是石墨导热膜,但是天然石墨导热膜散热效果一般,人工合成石墨膜的成本又高且不易裁切成本高。 纳米碳和石墨是同素异构体,散热原理差不多, 一般天然石墨的散热功率在400左右,人工石墨在1500,纳米碳的散热功率在1000-6000.散热还是 非常有效果的。同时纳米碳散热膜做出来已经 是成品了,加工只用开模,冲切就可以,加工过程很简单,费用低。

       LMS纳米碳铝箔散热片,它是由铝和稀土元素组合而成,总共有三层:热辐射层,铝合金层,导热胶层; 良好的柔韧性,易加工性;EMI电磁屏蔽和吸收,以保护敏感 的电子零件;符合RoHS标准,UL94V0可燃性额定;温度性能> 100°C;可模切成定制的形状;超强辐射散热,超薄,环保,上下均绝缘。成 本相对于人工石墨有很大的优势,而且不需要包边处理,可大幅下降施工成本。有 效的减少材料的损耗,同时因为我们对热辐射层的树脂做过处理,使其有无数个 小而均匀的山丘状突起面,能够有效的增大热辐射交换面积,更好的达成散热效果、、、

    Lms-TS / TSC系列产品物理特性参数:






                    测试项目



                    Tempt ltem




                          测试值



                          TypicalVale













                    单位



                    Unit




                    参照标准



                    Test Method








                    Lms-TS




                    Lms-TSC








                    颜色             Color








                    灰,粉红,兰








                    灰,粉红


















                    硬度              Hardness








                    70±5








                    70±5




                    ---









                    ASTM D-2240








                    比重            Specific




                    1.6




                    2.3




                    g/cm2









                    ASTM D792









                    抗拉强度          Tensile   Strength




                    >120




                    >150




                    Kgf/cm








                    ASTM-D412








                    击穿电压Dielectric Breakdown Voltage




                    >4




                    >4




                    KV








                    ASTM-D257








                    体积阻抗       Volume Receptivity




                    1.5*1012




                    1.5*1012




                    Ω.cm








                    ASTM-D257








                    阻燃等级           Flammabilith test




                    V1




                    V0




                    W/mk








                    UL94








                    耐温测试      Continuous   Use Temp




                    -40~200




                    -40~200




                    ℃








                    EN344








                    导热系数       Themal Conductivity




                    1.0




                    1.5













                    AST-D5470








                    环保测试             ROHS Test




                    PASS




                    PASS




                    --




                    ROHS

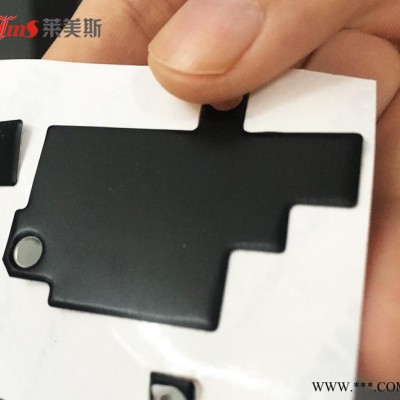

纳米散热片

纳米散热片

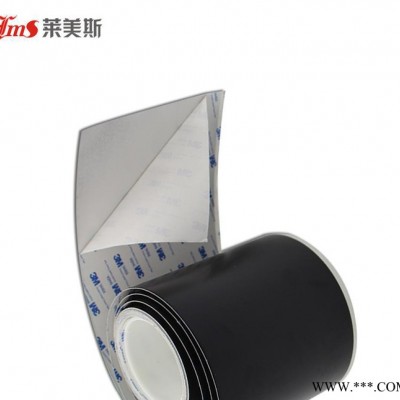

纳米铝箔

纳米铝箔

纳米涂层铝箔散热片证

纳米散热片SGS

纳米涂层铝箔散热片

纳米涂层铝箔散热片

纳米涂层铝箔散热片

纳米涂层铝箔散热片
