陶瓷橡胶复合板

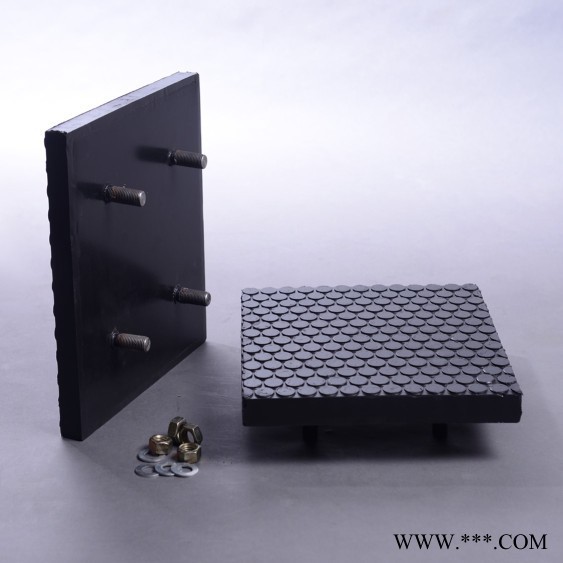

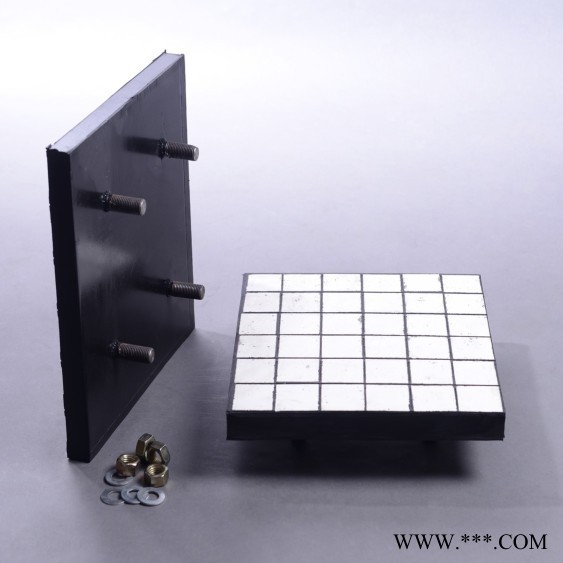

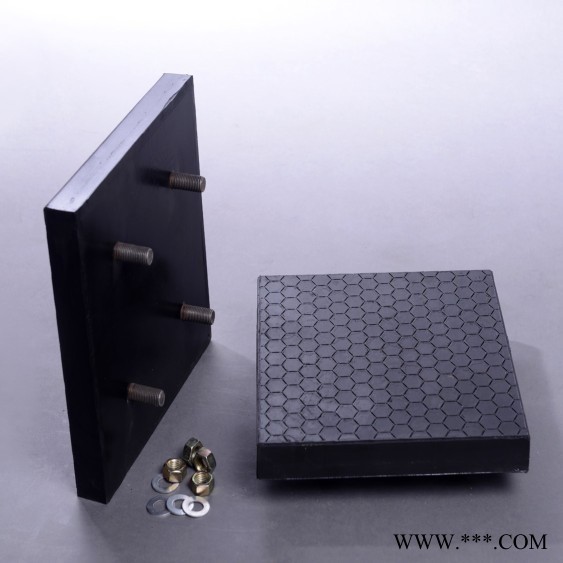

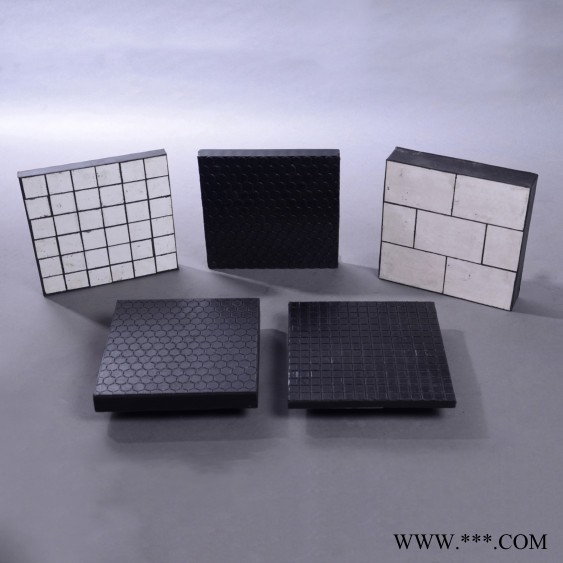

Rubberbacked ceramic sheets

产品特性/ Characteristics:

将硬度仅次于金刚石的92%或95%含量氧化铝陶瓷片硫化到橡胶或聚氨酯中。氧化铝陶瓷增强设备的耐磨性，橡胶起到缓冲物料的作用。在苛刻的磨损条件下这种陶瓷橡胶复合板内衬能延长设备的使用寿命，氧化铝陶瓷阻力小使物料流动顺畅，减少物料运行时间。

陶瓷橡胶复合板由于橡胶的减震作用具有较强的抗冲击性能，同时能有效降低设备运行的噪音。带螺栓的模块设计使产品易于安装，采用粘贴或螺栓固定的方法将产品安装在耐磨设备上。

Rubber backed ceramic sheets are designedand manufactured by vulcanising 92% or 95% wear-resistant alumina tiles intothe rubber backing. Alumina works against erosion whereas rubber on back take the impact load and thus after impact the slidingabrasion will be taken care of by alumina tile .

Thebenefits of rubber backed ceramic sheets are that the alumina is exposed to thematerial flow and is fully ded into a specially designed rubber backing.

The rubberbacking also assists in reducing noise levels within the plant and isengineered to resist the impact in each individual application. Modular bolt-insections for easy installation, Just bond or bolt them on as you would anyother traditional steel or rubber lining plate.

产品参数/Technical data:

氧化铝陶瓷片Alumina ceramic tile:

橡胶Rubber:

钢板/Steel：Q235

产品规格/Specification Available:：

常用规格的库存有：250 x 250mm, 300 x 300mm, 250 x 500mm,500 x 500mm等；

陶瓷厚度/Alumina ceramic tile：4---50mm

橡胶厚度/Rubber：5---20mm

钢板厚度/Steel：4---8mm

应用领域/ Applications:

适用于火力发电厂的输煤、排灰系统及冶金钢铁业的输料、配料系统中的料仓、料斗等设备做防磨衬板。陶瓷橡胶复合板能扭曲、划割，适用于安装各种异形设备，并具有耐水、耐弱酸碱等优异性能。

Rubber backed ceramic sheets are suitable for applications inareas of severe impact and areas of high abrasion.

High alumina ceramic deliver extra abrasion resistance andextend wear life.
